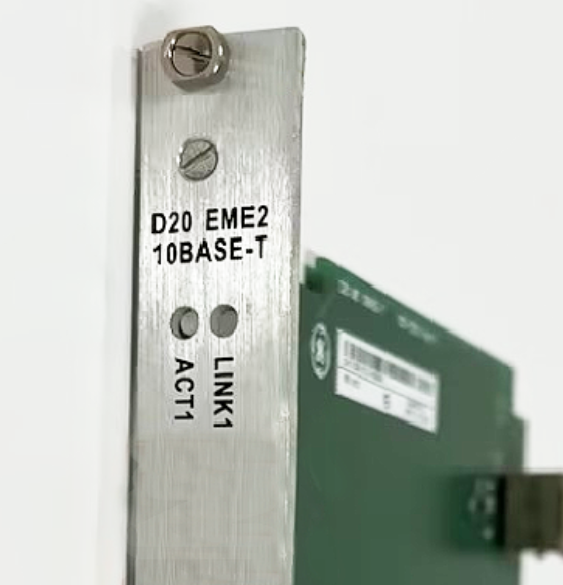

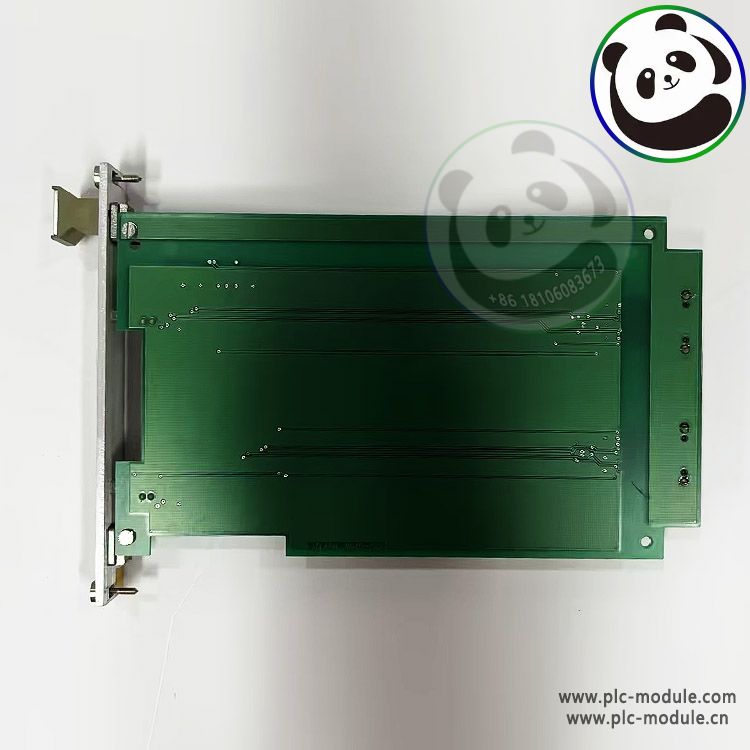

GE D20 EME210BASE-T Network card module.The GE D20 EME210BASE-T network card module is a specialized component designed for integration within the D20MX and D200 chassis, primarily utilized in substation automation solutions. This module facilitates Ethernet connectivity, enabling communication between devices within a distributed control system (DCS).
Key Features of D20 EME210BASE-T：
Module Name: Network card.
Functionality: Provides Ethernet connectivity for the D20MX and D200 chassis, supporting substation automation solutions.
Installation Instructions: It should be installed in the left-most slot of the D20MX and D200 chassis. Connection to the D20EME Ethernet module is made through J1.
Required Interface Cable: An interface cable (P/N 977-0298) is required when the module is installed.
Operational Modes: The module supports various operational modes defined by jumper positions JP1 and JP2, allowing configuration for LAN A (Channel 1) and LAN B (Channel 2).
Pin Functions: Detailed pin functions are outlined for inputs and outputs, including options for disabling/enabling test jabs and link tests, and defining operational modes.
The GE D20 EME210BASE-T network card module is a specialized component designed for enhancing Ethernet connectivity within substation automation systems.
GE D20 EME210BASE-T Network card module.
