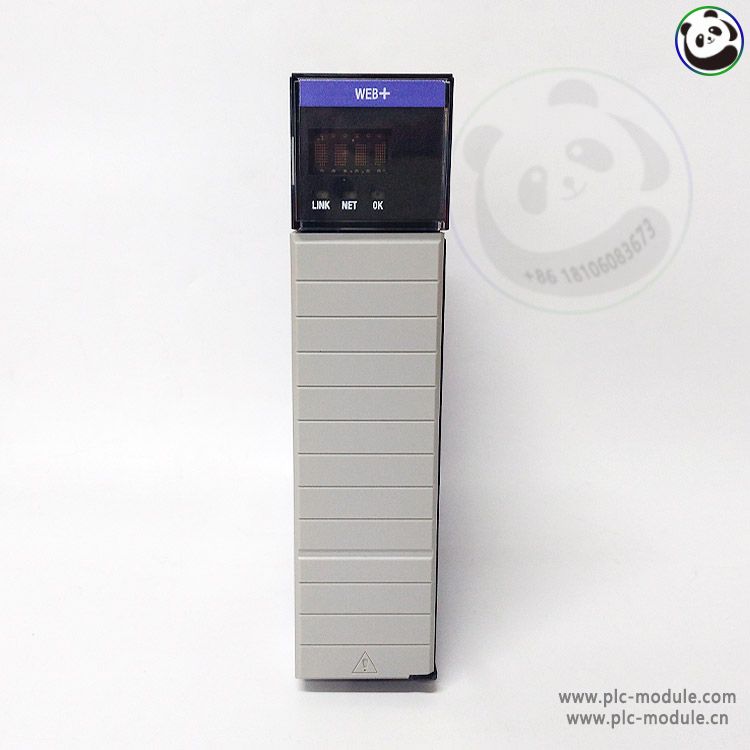

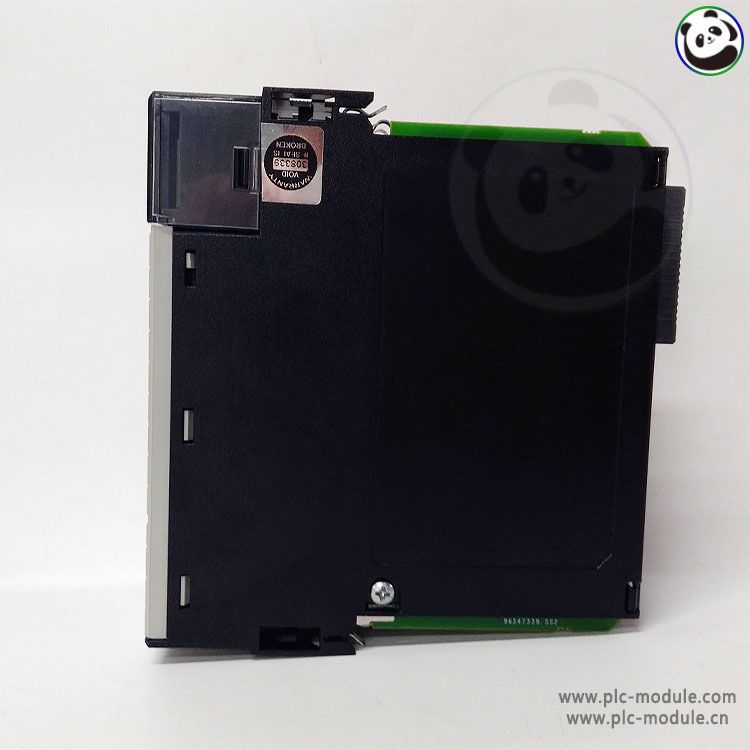

The 1756-EWEB is a network module designed for use in ControlLogix systems. It provides Ethernet/IP communication capabilities and serves as a web server for remote monitoring and configuration of the control system.
Key Specifications：
Communication Protocol: Ethernet/IP
Interface: 1 Copper RJ45 (10/100 Mbps)
Power Dissipation: 3.7 W
Thermal Dissipation: 12.6 btu/h
Current Draw: 700mA @ 5.1V DC, 3mA @ 24V DC
Operating Temperature Range: 0 °C <Ta <60 °C (32 °F <Ta <140 °F)
Storage Temperature Range: -40 °C <Ta <85 °C (-40 °F <Ta <185 °F)
Relative Humidity: 5...95% noncondensing.
Installation and Compatibility：
The module can be installed in any slot of a ControlLogix chassis.
It supports runtime and online addition of modules.
The module has one Ethernet port.
Certifications and Compliance：
North American temperature code: T4A
IECEx temperature code: T4
Emissions compliance: CISPR 11: Class A
Vibration resistance: 2 G @ 10...500 Hz
Shock resistance: Operating: 30 G, Non-operating: 50G.
Additional Features：
Supports TCP/IP protocol
Provides isolation voltage of 30V (continuous), basic insulation type, between Ethernet, network, and backplane
Compliant with 802.3 standards for Ethernet cables
Supports communication rates up to 10/100 Mbps.
