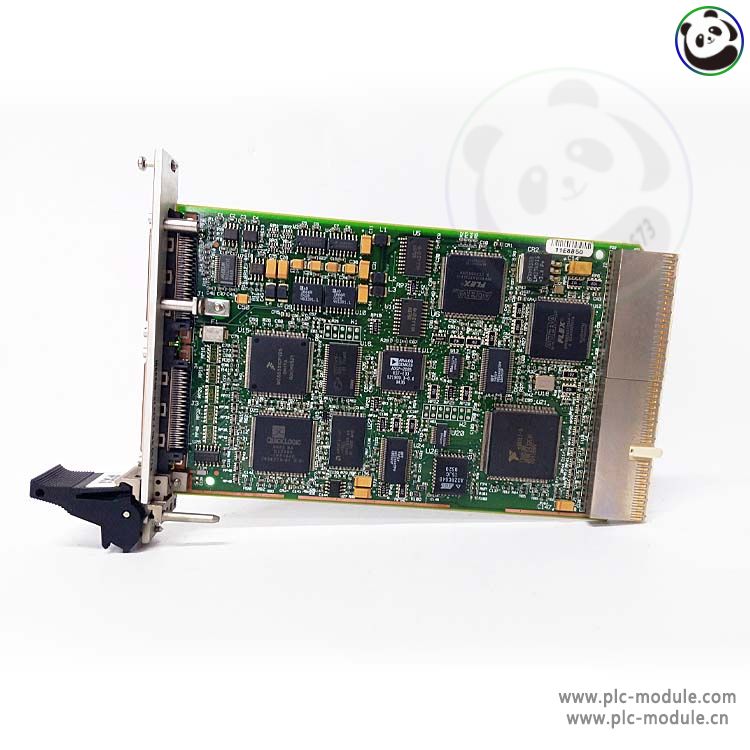

The PXI-7344 is a motion controller produced by National Instruments, part of their FlexMotion family of products. It is designed for use in PXI systems and offers advanced motion control capabilities. The PXI-7344 supports National Instruments' Real-Time System Integration (RTSI) bus, allowing high-speed connectivity between National Instruments products.Can execute up to 10 simultaneous motion programs in a preemptive, real-time multitasking operating system environment.（www.plc-module.com）Supports motion profiles controlled with enhanced PID/PIVff servo updates at 62 µs per axis.Each axis has dedicated motion I/O for end-of-travel limit and home switch inputs, breakpoint output, trigger input, and encoder feedback rates up to 20 MHz.
KEY FEATURES：
Dual-Processor Architecture:
Uses a Motorola MC68331 real-time 32-bit CPU
Combined with an Analog Devices ADSP-2185 digital signal processor (DSP)
Custom field programmable gate arrays (FPGAs)
Motion Capabilities:
Fully programmable motion control for up to four independent or coordinated axes of motion
Dedicated motion I/O for limit and home switches
Additional I/O for general-purpose functions
Servo and Stepper Motor Support:
Can control servo motors, servo hydraulics, servo valves, and other servo devices
Supports stepper motors with open or closed-loop operation
Feedback Options:
Uses quadrature encoders or analog inputs for position and velocity feedback
Provides analog command outputs with ±10 V range
Software Integration:
Compatible with LabVIEW and LabWindows/CVI
Includes FlexMotion software with VI libraries for easy integration
HARDWARE SPECIFICATIONS：
High-density, 68-pin female VHDCI connectors for motion I/O connections
Additional non-dedicated user I/O including 32 bits of digital I/O and four analog inputs
