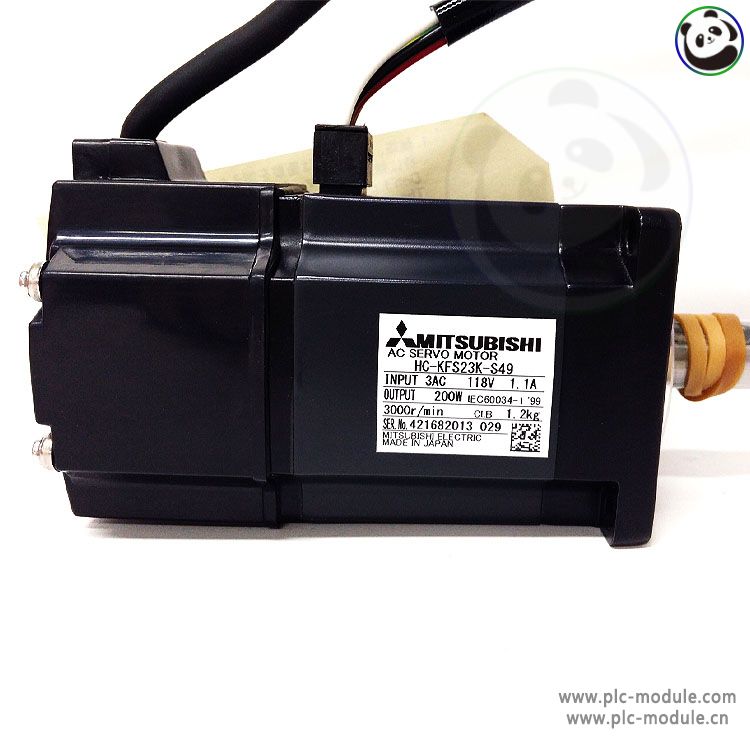

The Mitsubishi HC-KFS23K-S49 AC Servo Motor is a high - performance device with a wide range of applications.The motor typically consists of a stator and a rotor. The stator contains the windings through which the AC current is passed to generate a rotating magnetic field. The rotor design is optimized for efficient torque generation and smooth rotation. It often uses high-quality magnetic materials to ensure good magnetic coupling between the stator and rotor.

• Voltage Rating: It is designed to operate with a specific AC voltage range. For example, it might be rated for a three-phase AC voltage supply, such as 200 - 230V AC, which is a common voltage range in industrial settings.
• Current Consumption: The current drawn by the motor depends on the load it is driving and the speed at which it is operating. At full load and rated speed, it has a defined current consumption value. This information is important for sizing the servo amplifier that will power the motor and for ensuring that the electrical system can supply sufficient current without overloading.
• Frequency: As an AC servo motor, it operates at a specific frequency range. In most industrial applications, the power supply frequency is 50Hz or 60Hz, and the motor is designed to work optimally within this frequency range to achieve the desired speed-torque characteristics.

Performance Characteristics

• Speed Range: It offers a wide speed range. For example, it can have a no - load speed of several thousand revolutions per minute (RPM), allowing for high - speed applications such as in high - speed machining or high - throughput conveyor systems. At the same time, it can also operate at very low speeds with high precision, making it suitable for applications where slow and accurate positioning is required, like in robotic arm end-effectors.
• Torque Output: The motor is capable of providing a significant amount of torque. The rated torque value is specified for a particular operating condition. There is also a peak torque value that the motor can deliver for short - duration, high - load applications, such as during the acceleration or deceleration of a heavy load.
• Precision and Resolution: It has excellent precision and resolution in terms of position control. With the help of an appropriate servo - control system (including a servo amplifier and a feedback device like an encoder), it can achieve very accurate position - holding and position - changing capabilities. The encoder typically provides a high - resolution feedback signal, enabling the motor to be controlled to within a fraction of a degree of rotation.

Feedback Mechanism

• Encoder: The motor is usually equipped with an encoder for position and speed feedback. The encoder can be an incremental or an absolute encoder. An incremental encoder provides information about the relative change in position or speed, while an absolute encoder gives the exact position of the motor shaft at any given time. The feedback from the encoder is sent back to the servo - control system, which uses this information to adjust the motor's operation to match the desired performance.

• Resolver: In some cases, a resolver can also be used as a feedback device. A resolver provides accurate angular position and speed information and is known for its robustness in harsh industrial environments.

Applications

• Industrial Automation: It is widely used in factory automation systems such as robotic arms for pick - and - place operations, CNC machines for precise cutting and milling, and automated assembly lines. In a robotic arm, the servo motor provides the necessary torque and precision to move the arm segments to the exact positions required for tasks like component insertion or object handling.
• Packaging Machinery: In packaging equipment, the motor can be used to control the movement of conveyor belts, the rotation of filling nozzles, and the positioning of packaging materials. Its high - speed and accurate positioning capabilities ensure efficient and precise packaging operations.

• Material Handling: In material - handling applications like automated storage and retrieval systems (AS/RS), the servo motor is used to drive the movement of cranes, lifts, and shuttle cars. It allows for the smooth and precise transportation of goods within a warehouse or a distribution center.
