FOXBORO FMB212 P0914XL I/A Series Thermocouple/mV Differential Input Module

  • Warranty: 365 days
  • Quality: Original module
  • Condition: New / Used
  • Warehouse: Spot
  • Delivery time: Shipped in 3 days after payment
  • Mailbox:panda@xiongbaindustrial.com

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

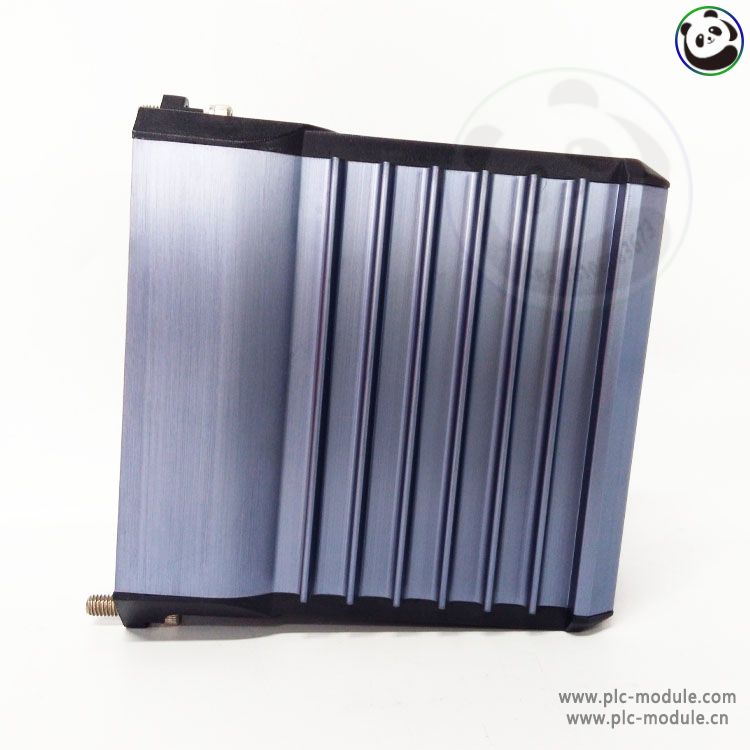

The FBM212 Thermocouple/mV Differential Input Module contains 14 differentially isolated thermocouple input channels, and one differentially isolated RTD reference junction temperature compensation channel.  The module performs the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant Fieldbus. FBM212 has a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments, per ISA Standard S71.04.


DOWNLOAD THE FMB212PDF FILE:

FBM212.pdf



The Differential Thermocouple/mV Input Module (FBM212) contains 14 differentially isolated thermocouple input channels, and one differentially isolated RTD reference junction temperature compensation channel (for terminal temperature sensing). Each thermocouple/mV channel accepts standard thermocouples for various temperature ranges, and each provides thermocouple burnout detection (up-scale). Each channel has a differential input to allow voltage differences between channels without introducing errors.


KEY FEATURES OF THE FBM212 P0914XL ARE:

- Fourteen channels for input of thermocouple signals

- One isolated RTD reference junction compensation channel (for terminal temperature sensing)

- Each channel has a differential input

- Rugged design suitable for enclosure in Class G3 (harsh) environments

- Execution of an analog input application program that provides conversion time and configurable options for Rate of Change Limits

- High accuracy achieved by sigma-delta data conversions for each channel

- Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM212.


MODULAR BASEPLATE MOUNTING:

The module mounts on a 200 Series baseplate, which accommodates up to four or eight Fieldbus Modules. The Modular Baseplate is either DIN rail mounted or rack mounted, and includes signal connectors for redundant Fieldbus, redundant independent DC power, and termination cables. For applications which require CE certification, the baseplate and power supplies must be installed in a metal rack. Open wall mounting in that case is not allowed.
