ABB Pressductor Pillowblock Load Cells Vertical Measuring PFCL 201.-----The load cell is machined from a single piece of stainless steel. The sensors are machined directly in the piece of steel and are positioned so that they are sensitive to force in the direction of measurement and insensitive in other directions.
The load cell is mounted on a base with four screws, and the bearing housing is mounted on top of the load cell with four screws. Every load cell comes calibrated and temperature compensated.
The load cells PFCL 201C/201CE/201CD are available in four measurement ranges, all variants have the same external dimensions.

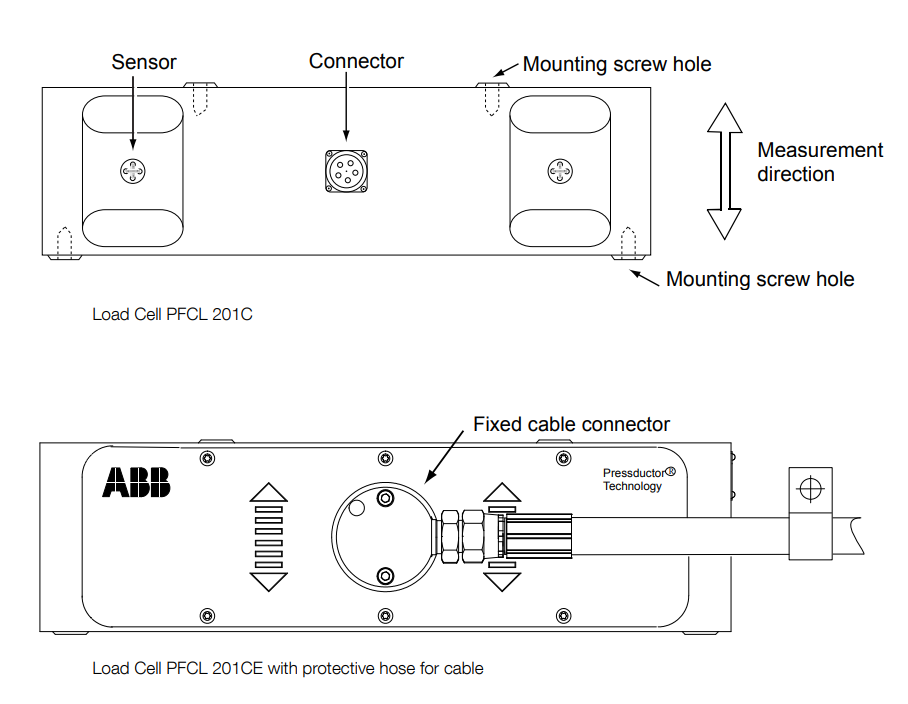

The load cell PFCL 201C is equipped with a connector for the pluggable connection cable. The load cell PFCL 201CE has a fiWed connection cable with protective hose. The load cell PFCL 201CD is provided with an acid-proof cable gland with a fiWed PTFE- insulated connection cable.
DATA SHEET DOWNLOAD：
PFCL201.pdf
PFCL 201CE Made in Sweden
（45CM*12CM*11.5CM）
Load Cell PFCL 201CE 50KN with insulated cable connection
A complete measuring system normally consists of two load cells, a junction box, one control unit with two measurement channels and cabling.
The load cells are installed under the roll bearings, where they measure forces at right angles to the mounting surface.
The reactive force from the strip, which is proportional to the strip tension, is transferred to the load cells via the roll and the bearings.
The load cells are connected to the control unit via a junction box. The control unit converts the load cell signals to DC voltages that are proportional to the reaction force. Depending on which control unit is chosen, it is possible to have the analog signals for the two individual load cells (A and B), the sum of the load cell signals (A+B), and/or the difference between the load cell signals (A-B).
