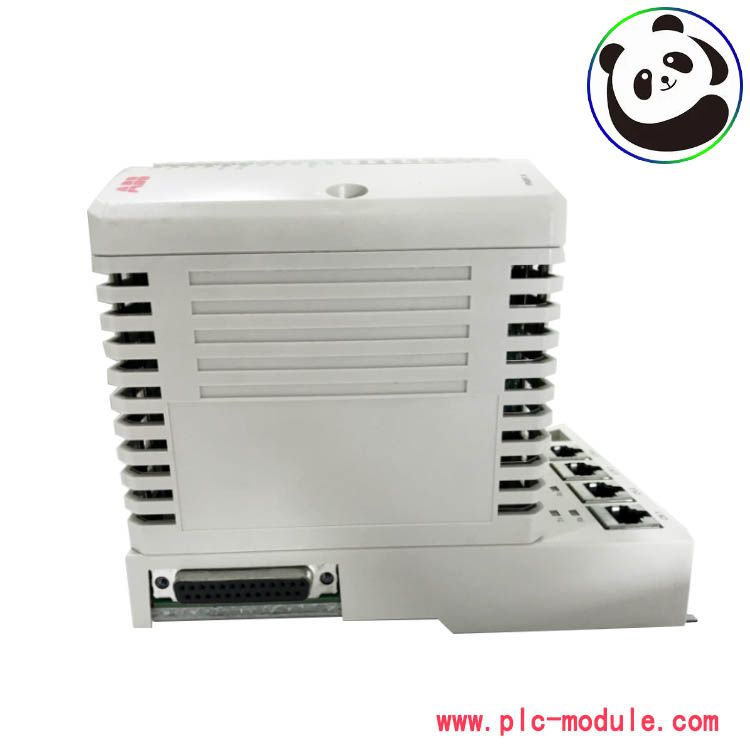

ABB PM856AK01 3BSE066490R1 AC 800M Controller
Communications Controllers/High quality performance completes the system task In the automation system control has a very important role
The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.
PM856AK01 is a processor unit that belongs to the AC 800M family of rail-mounted modules [1]. It is a CPU module that contains the microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and a CompactFlash interface [0]. The base plate of the PM856AK01 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4) [1]. It is available with 16 MB of memory and a clock frequency of 24 MHz [0].
There are several CPU modules in the AC 800M family to choose from, ranging from single units with medium processing power and memory to fully redundant units with high processing power [1]. The PM856AK01 is a non-redundant unit, which means it does not have backup components in case of failure [1].
Brand：ABB
Model：PM856AK01
Part No： 3BSE066490R1
Product Name：Controller Module | CPU Module | AC 800M Module
Website:www.plc-module.com
The base plate of the PM851AK01-EA controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool.
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.
Features and benefits
Reliability and simple fault diagnosis procedures
Modularity, allowing for step-by-step expansion
IP20 Class protection without the requirement for enclosures
The controller can be configured with 800xA control builder
The controller has full EMC certification PM856 Controller Module
Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
