Schneider Electric 140ACO13000 analog output module

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：panda@xiongbaindustrial.com

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Schneider Electric 140ACO13000 analog output module The Modicon 140ACO13000 is an analog output module manufactured by Schneider Electric. It is part of the Modicon Quantum ExoStruxure control series for discreet and analog I/O modules. It can be configured with UnityPro software. This unit has eight channels for analog output used to control and monitor current. It does this in 4 ... 20 mA, 0 ... 20 mA, and 0 ... 25 mA loops.

140ACO13000

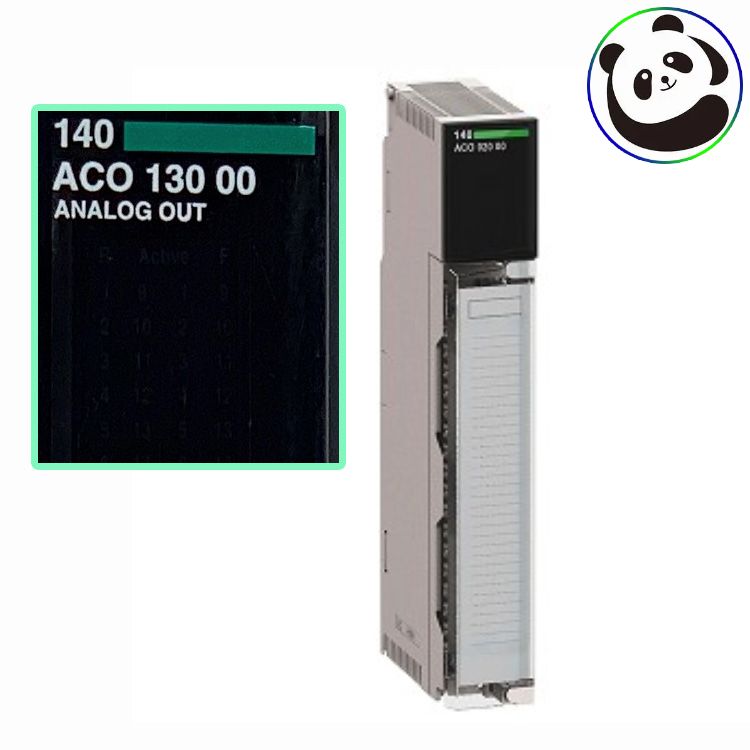

The Schneider Electric 140ACO13000 Modicon module has six identifiable features. On the top front of the module, you can see the color-coded module number as well as a description. Beneath the number is the LED with 8 different indicators. Enclosed in the removable door with a customer identification label is the fuse cutout area. and the field wiring terminal strip.

The 140ACO13000 LED to alert you green when the Bus communication is present. The LED alerts RED when there is an error external to the module detected. 1...8 are green when the module outputs are switched on, and red when there is an indication of a channel having a broken wire.

The input range on this module is 0…25 mA 0…20 mA 4…20 mA. The resolution is 0…25 mA: 0…25,000 points 0…20 mA: 0…20,000 points 4…20 mA: 0…16,000 points (default) 4…20 mA: 0…4095 points. There is no isolation between channels. and it has 8 output words. The Bus current required is 550 mA. It has a max dissipated power of 5.0 W. You can modify the configuration online. It carries UL 508, CSA 22.2-142, e, FM Class 1 Div. 2, ATEX Zone 2/22 approvals.

Main
range of product	Modicon Quantum automation platform
product or component type	Analogue output module

Complementary
analogue output number	8
addressing requirement	8 output words
loop voltage	6…30 V DC
maximum voltage drop	<30 V 25 mA
analogue output range	0...20 mA 0...20000 counts 0...25 mA 0...25000 counts 4...20 mA 0...16000 counts 4...20 mA 0...4095 counts
absolute accuracy error	+/- 0.2 % of full scale at 25 °C
linearity	+/- 12 µA 4...20 mA 0...4095 counts +/- 4 µA 0...20 mA 0...20000 counts +/- 4 µA 0...25 mA 0...25000 counts +/- 4 µA 4...20 mA 0...16000 counts
accuracy drift according to temperature	0.004 % of full scale/°C typical 0.007 % of full scale/°C maximum
isolation between channels and bus	1780 V for 1 minute AC
update time	5 ms
setting time	3.2 ms to +/-0.1% of the final value 1.6 ms to 5% of the final value
fault type	Open circuit 4...20 mA
bus current requirement	550 mA
maximum power dissipation in W	5 W
external power requirement	6...30 V
Marking	CE
local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 8 LEDs (green) for channel is turned on 8 LEDs (red) for channel fault
module format	Standard
Net weight	0.3 kg

Environment
product certifications	CUL FM Class 1 Division 2
Standards	UL 508 CSA C22.2 No 142
resistance to electromagnetic fields	10 V/m 80…2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
relative humidity	95 % without condensation
Operating altitude	<= 5000 m
