PROSOFT PTQ-PDPMV1 Schneider PROFIBUS DP Master Network Interface Module

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

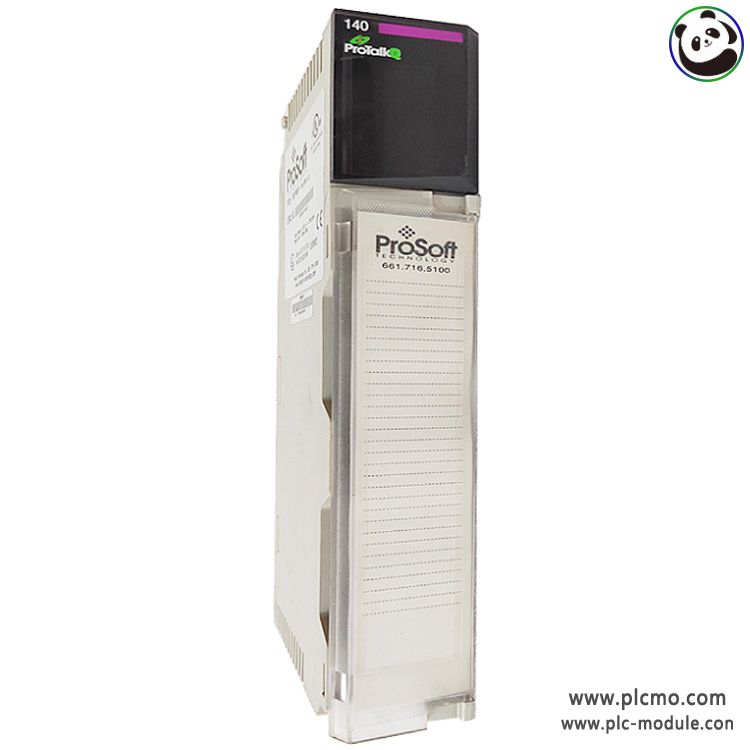

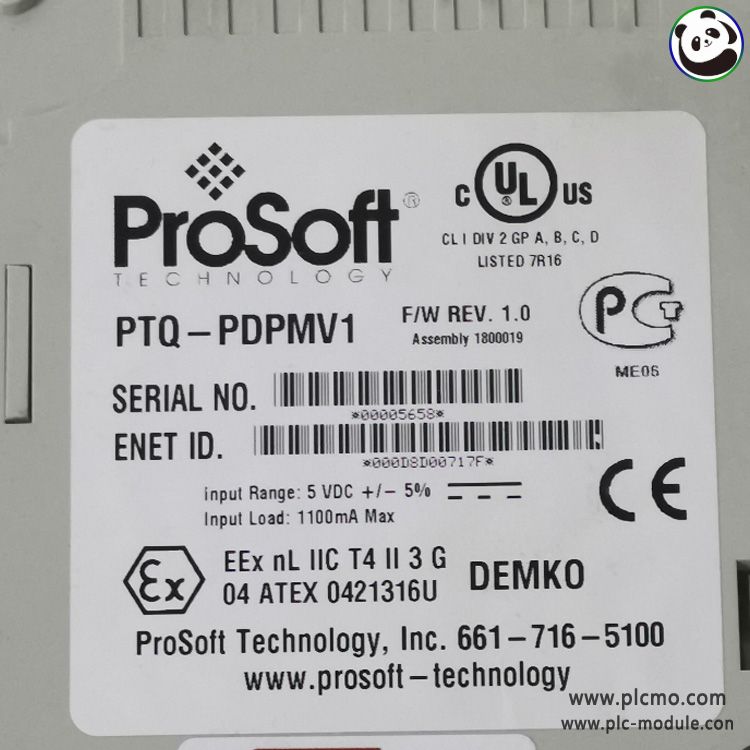

PROSOFT PTQ-PDPMV1 Schneider PROFIBUS DP Master Network Interface Module The PROFIBUS DPV1 Master module is a powerful communication interface for Quantum processors. Developed under license from , the module incorporates proprietary backplane technology that enables powerful data exchange with processors.

The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol.

The module acts as an input/output module between the PROFIBUS network and the processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.

 General Specifications

• Single slot - Quantum backplane compatible

• The module is recognized as an Options module and has access to PLC memory for data transfer

• Configuration data is stored in non-volatile memory in the ProTalk module

• Configuration software for Microsoft Windows XP, 2000 and NT is included with the module

• Up to six modules can be placed in a rack

• Local rack - The module must be placed in the same rack as the processor

• Compatible with all common Quantum programming packages, including Concept

(version 2.6 or higher), Unity Pro (version 2.2 or higher), ProWORX (version 2.20 or

later) (HSBY only available with Unity Pro environment)

• Quantum data types supported: 3x, 4x

• High speed data transfer across the backplane provides quick data update times

• Sample ladder file available

Functional Specifications

• Easy-to-use drag and drop Busview configuration interface via ProSoft

Configuration Builder software (see PSW-PCB Datasheet)

• Monitoring and modification of process data and DPV1 acyclic data with online

slave diagnostics

• Supports PROFIBUS PA slaves on the network through DP/PA coupler or link

• Supports up to 125 slave devices with repeaters

• Supports extended diagnostic data (DPV1)

• Supports all standardized baud rates, up to 12 Mbits/s

• Auto baud detection at all valid PROFIBUS DPV1 rates

• Supports PROFIdrive 3.1 compliant parameter read and write operations

• Supports Sync and Freeze commands

• Alarm indications and confirmations handling (DPV1)

• Supports Multicast and Broadcast telegrams (DPV1)

• CRC checksum determination of slave configuration consistency to processor

• FDT/DTM PROFIBUS Master transport communication DTM software included

(Product Number PSW-CDTM-PDPM)
