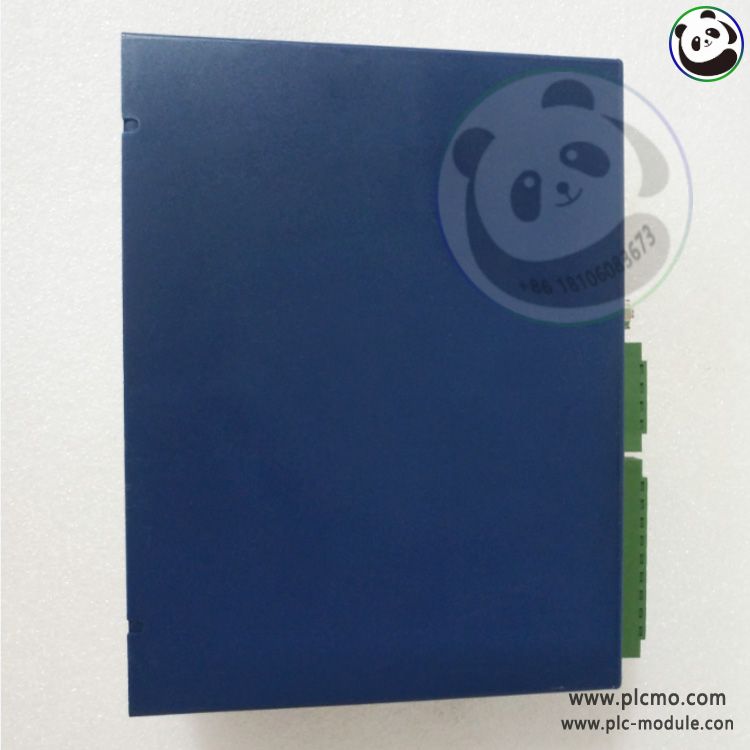

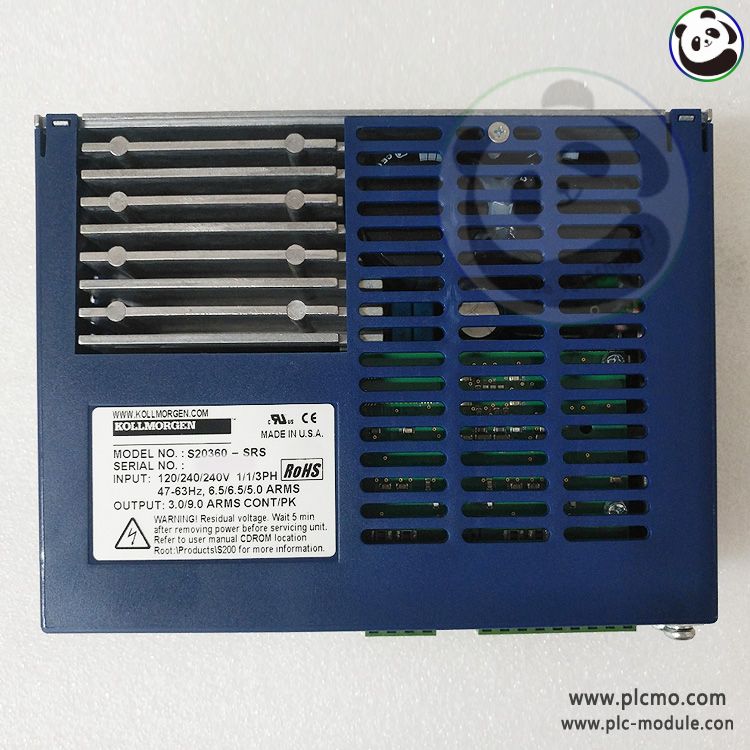

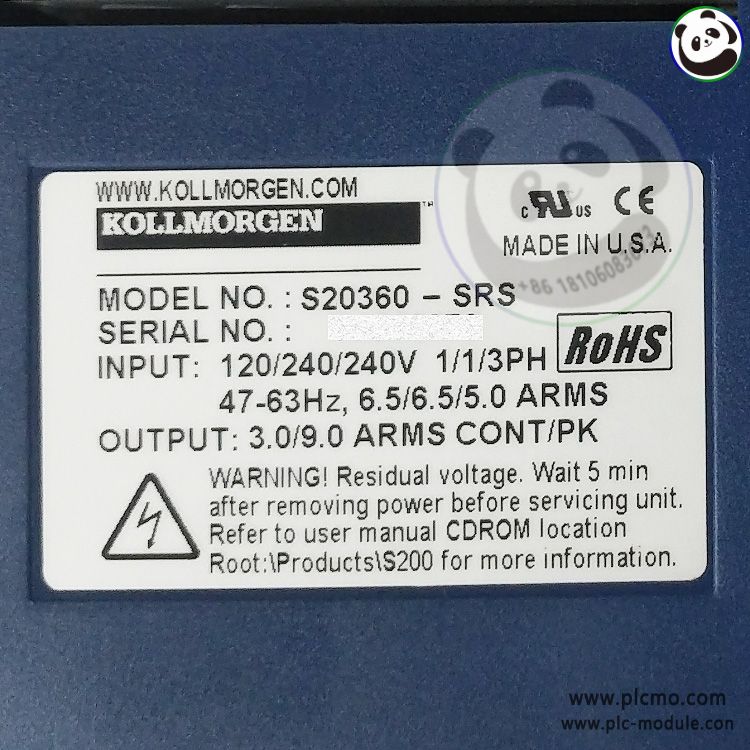

KOLLMORGEN S20360-SRS DANAHER Servo Drive

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

KOLLMORGEN S20360-SRS DANAHER Servo Drive Kollmorgen S200 servo drives are the first all-digital industrial drives with a velocity loop bandwidth of 800 Hz.  These compact drives offer simplified tuning and unmatched system throughput, with high-resolution feedback

FEATURES

• Available for 120/240 VAC and 20-90 VDC operation with current ratings from 1.5 Amps RMS continuous to 48 Amps RMS peak

• 24-bit high-resolution feedback

• 3-5 kHz high-performance current loop bandwidth

• Intelligent feedback device with electronic motor nameplate eliminates the need for drive parameter set-up and servo loop tuning, allowing allows plug-and-play commissioning in most applications

• Standard features include torque and velocity control base, electronic gearing, up to an 18-bit analog reference input and an encoder equivalent output

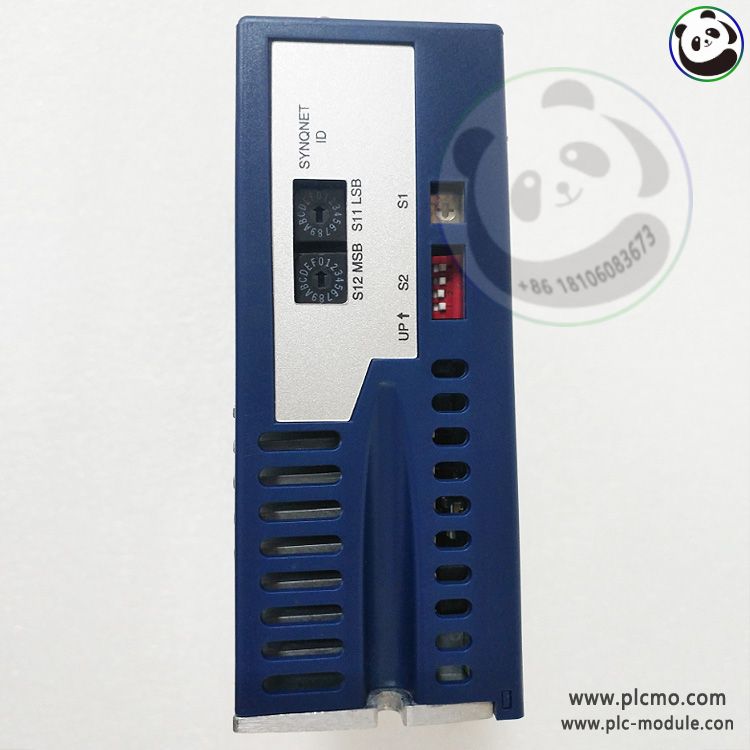

• Options available to support either indexing or SynqNet™ based programmable motion control

• Meets UL 508C, CE, EN50178, EN61800-C and Semi F47 Standards

• Separate "Keep Alive" power input allows rapid recovery from emergency stop conditions

BENEFITS

• Wide power range allows a single drive family to be deployed through-out your entire machine

• Compact footprint allows use of smaller cabinets, or mounting close to the point of use

• Optically isolated inputs/outputs, positive locking connectors and full fault protection for long machine life and immunity to accidental damage

• High performance system designed for increased machine throughput

• Easy-to-use graphical user interface reduces engineering and support time

• Reduced overall cost
