BENTLY 3500/15-05-05-00 Ac dual power supply

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

BENTLY 3500/15-05-05-00 Ac dual power supply.The US Bentley 3500 system is used for vibration monitoring and protection of large machinery. Bentley 3500 system must be equipped with frame 3500/05, power 3500/15, frame interface module 3500/22M,bently3500 high voltage AC 220V, spare parts are as follows 127610-01 AC power module

Click to open the file below for more details, or download it:

Bently 3500-15-AA-BB-CC power supply.pdf

High Voltage AC Power Input Module (PIM)

Low Voltage AC Power Input Module (PIM)

129486-01 High voltage DC power supply module

129478-01 High Voltage DC Power Input Module (PIM)

133292-01 low voltage DC power supply module

Low Voltage DC Power Input Module (PIM)

Standby fuse (two types of AC PIM and HVDC PIM)

Standby fuse (low voltage DC PIM)

129767-01 Power supply operation and maintenance Manual

Bentley Power bently 3500/15 order information and model description are as follows:

3500/15-AXX-BXX-CXX option description

A: Type of power supply (upper notch)

01 Low voltage AC (85-132 Vac rms)

02 High voltage AC (175-264 Vac rms)

03 High voltage DC (88-140 Vdc)

04 Low voltage DC (20-30 Vdc)

05Universal AC power supply (85-264 Vac rms) (new)

B: Type of power supply (lower notch)

No power supply (only if single power supply is required)

01 Low voltage AC (85-132 Vac rms)

02 High voltage AC (175-264 Vac rms)

03 High voltage DC (88-140 Vdc)

04 Low voltage DC (20-30 Vdc)

05Universal AC power supply (85-264 Vac rms) (new)

C: Approve the unit option

00 None

01 CSA/NRTL/C

02 ATEX/IECEx/CSA (Class 1, Zone 2)

CN China

The specific model is as follows:

3500/15 (front panel 127610-01, back panel 125840-01)

Upper notch & lower notch are installed, so it is a dual power supply,

The upper notch is installed, the lower notch is not installed, so it is a single power supply

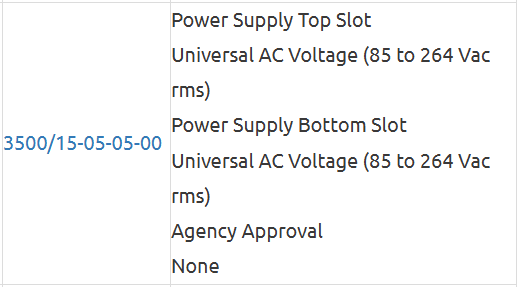

3500/15-05-05-00, upper notch & lower notch are installed, so it is a dual power supply

The following is the upgraded 3500/15 universal AC power module:

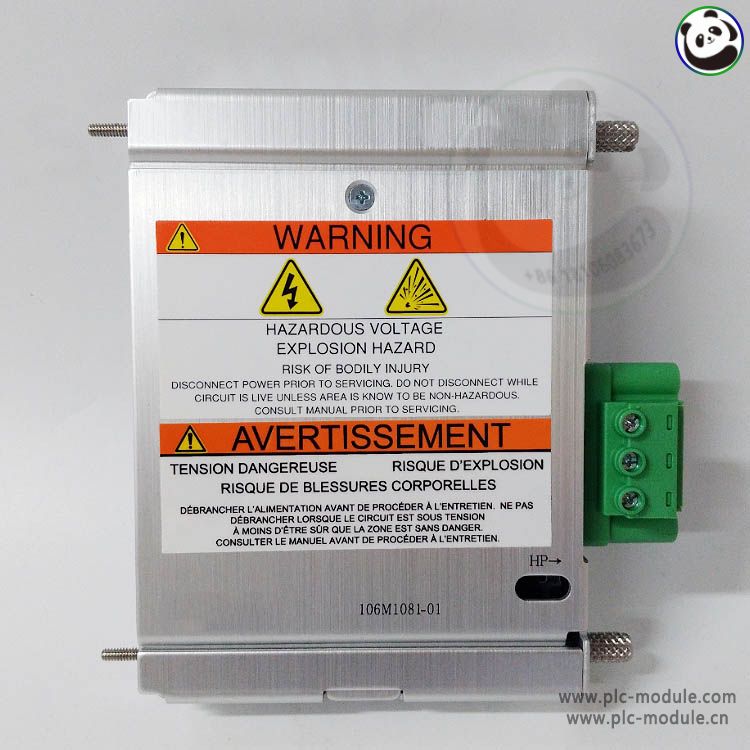

3500/15(front panel 106M1079-01, back panel 106M1081-01)

3500/15-05-05-00, upper notch & lower notch are installed, so it is a set of double power supply

3500/15-05-00-00, the upper notch is installed, the lower notch is not installed, so it is a single power supply

3500/15-05-05-cn (106m1079-01 * 2 + 106 m1081-01 * 2) Product type: 3500/15 Power supply made in USA. A CO (CO) Power supply type (top slot) : 05 = Universal AC voltage (85 to 264 VAC RMS) Power supply type (bottom slot) : 05 = General AC voltage (85 to 264 VAC RMS) cn = Country specific for approval (cn option Quick reference guide and site notification letter in download section) Operating temperature :-30 °c to + 65 °c Storage temperature :-40 °c to + 85 °c Condensability: 95%
