GE IS230SNRTH2A Gas Turbine Control Systems Base module.The entire module is regarded as the least replaceable unit, and no assistance is provided to diagnose or replace the individual boards that comprise the module./Power is supplied to a JGPA board via connector P4. The module is connected to TCAT via two 68-pin cables on connectors P1 and P2.

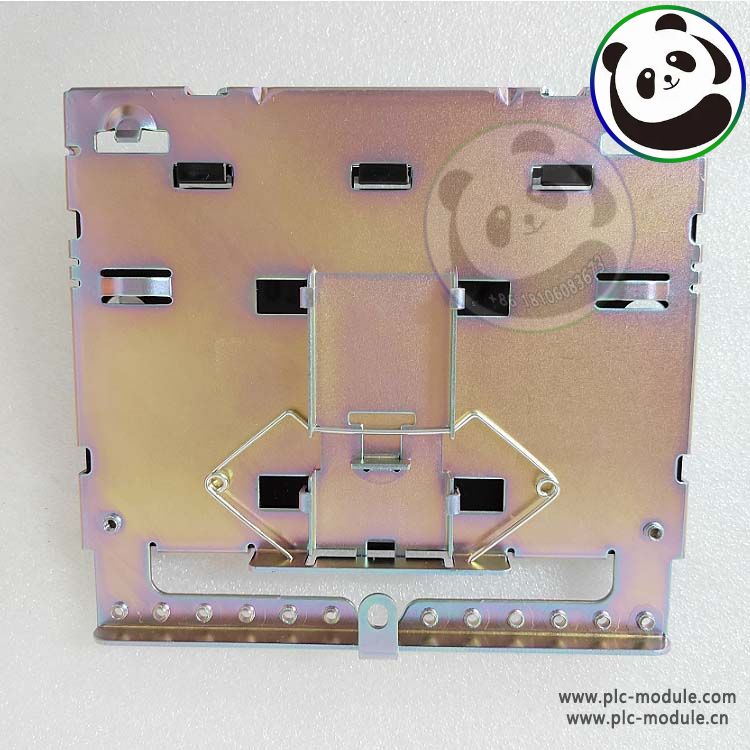

GE IS230SNRTH2A Gas Turbine Control Systems Base module
GE IS230SNRTH2A Gas Turbine Control Systems Base module
GE IS230SNRTH2A Gas Turbine Control Systems Base module
Verify that the JGPA shield wire terminals are properly grounded. In most cases, the JGPA shield ground terminals are electrically connected to the sheet metal on which the board is mounted. The mounting then serves as the terminals' ground path. In some applications, a shield ground that is independent of the mounting sheet metal must be defined. The JGPA is mounted in these applications using hardware that isolates the board from the sheet metal. It is critical to provide a suitable ground wire between one or more JGPA terminals and the required shield ground potential in these applications.
| GE IS230SNRTH2A Gas Turbine Control Systems Base module |
