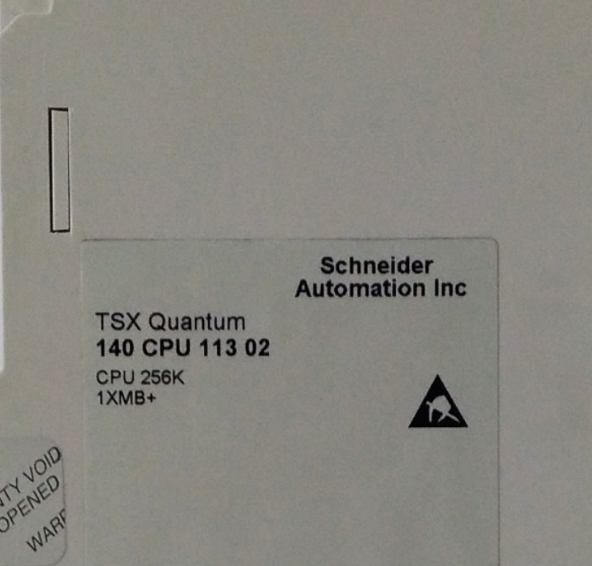

SCHNEIDER MODICON 140CPU11302 Module 140-CPU-113-02 The Modicon Quantum processor module 140CPU11302 is a Schneider Electric unit.  It is used in an automation system that entails digital processing capabilities. This module works within the Modicon Quantum Automation System

Features

The Modicon Quantum CPU module like 140CPU11302 is a module that is a part of the system that must be plugged into the backplane. It is for use on the Quantum local I/O backplane. As a digitally operating electronic system, this CPU part uses a programmable memory that you, the user, install for storage in the internal storage. Once the user-programmed instructions are on the memory, you can implement various functions.  The instructions can be used for specific functions on your system including logic, process sequencing, timing, coupling, and arithmetic.

What do the digital and analog outputs do within the Modicon Quantum System? The digital and analog outputs control processes and machines. These various processes and machines follow the programmed instructions that are allowed through the two different output types: digital and analog. The Modicon 140CPU11302 Quantum CPU processor module has 256 K RAM and 8 K User Logic. The software used in this unit is ProWorx 32.

Advantages

For what is this system designed? The Modicon Quantum Automation System gives you real-time control within two applications: industrial and manufacturing made possible through modular, expandable engineering, using several distinct modules. The modules such as CPUs I/O, simulators, and cabling working together in the Modicon Automation System.

How to use a 140CPU11302

What can you expect with this system? The sleek, easy-to-use architecture of this Schneider Electric makes it user-friendly with effortless maintenance. The Quantum power supplies power-up all of the various modules within the system.

These modules are inserted into a backplane that includes Quantum CPU modules (140CPU11302), Quantum Interface modules, and Quantum I/O modules. Different system configurations require the use of power supply modes.  Your system configuration determines which mode. The three configuration types for the Power Supply are the Standalone mode, Standalone Summable mode, and Redundant mode.

The clock frequency on the module is 20 MHz. This unit supports 3 distributed and 2 remote networks. The Modicon 140CPU11302 Quantum CPU processor module has 1 Modbus Plus port and 1 Modbus RS232 port. The number of distributed network drops for the Modicon 140CPU11302 is 63. The number of remote drops for the Modicon 140CPU11302 is 31. The bus current requirement for the Modicon 140CPU11302 Quantum CPU processor module is 780 mA. It requires a lithium 5 µA 110 µA battery with a capacity of 1.2 AH.  The battery life should be 10 years.
